Clean Power

synchronous belt

Industrial timing belt widely used in the textile, chemical fiber, tobacco, paper, printing, chemical mechanical equipment, mining and metallurgy, medical equipment.

v belt

With characters of V belt and flat belts, V-Ribbed belt has soft and tough property as flat belt and tight and effective property as V belt


Polyurethane Belt

PU timing belt is made of thermoplastic polyurethane, and steel cord or kevlar cord.We offer full range of PU endless and open end timing belt.

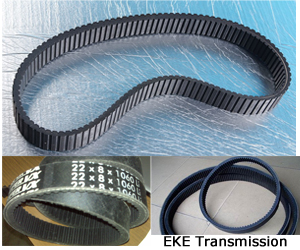

Speed Belt, Variable Speed Belt

    Description:

Stepless Variable Speed Belt features simple,stable transmission,vibration absorb and convenient maintenance,realizable stapless variable speed.

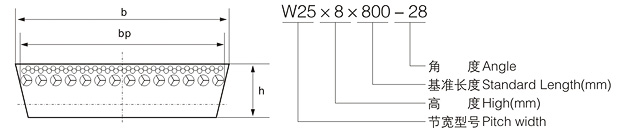

Dimensions of lndustrial Variable Speed Belt
Type
W16
W20
W25
W3.15
W40
W50
W63
W80
W100
b
17
21
26
33
42
52
65
83
104
bp
16
20
25
31.5
40
50
63
80
100
h
6
7
8
10
13
16
20
26
32

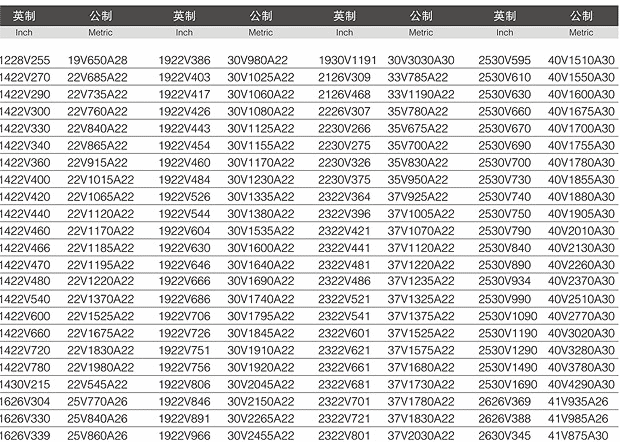

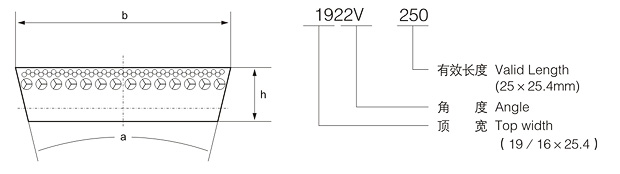

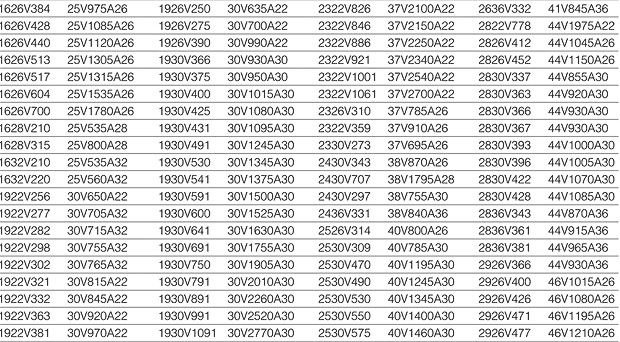

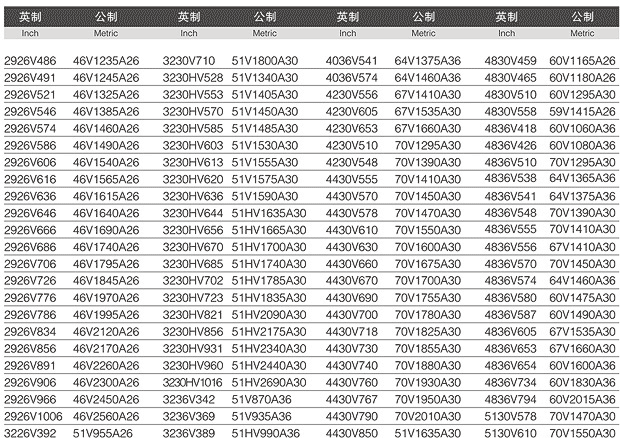

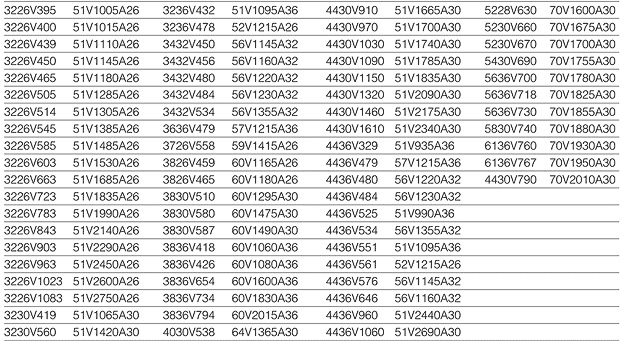

Type
1022V
1422V
1922V
2322V
2926V
4430V
4836V
6236V
b
16
22
30
36.5
46
70
76
100
h
6
8
11
12
14
17
22
26
a
22?/DIV>
22?/DIV>
22?/DIV>
22?/DIV>
26?/DIV>
30?/DIV>
36?/DIV>
36?/DIV>
